YG2系列永磁辊

YG2系列永磁辊YG2 series of permanent magnet roll

用途及特点：

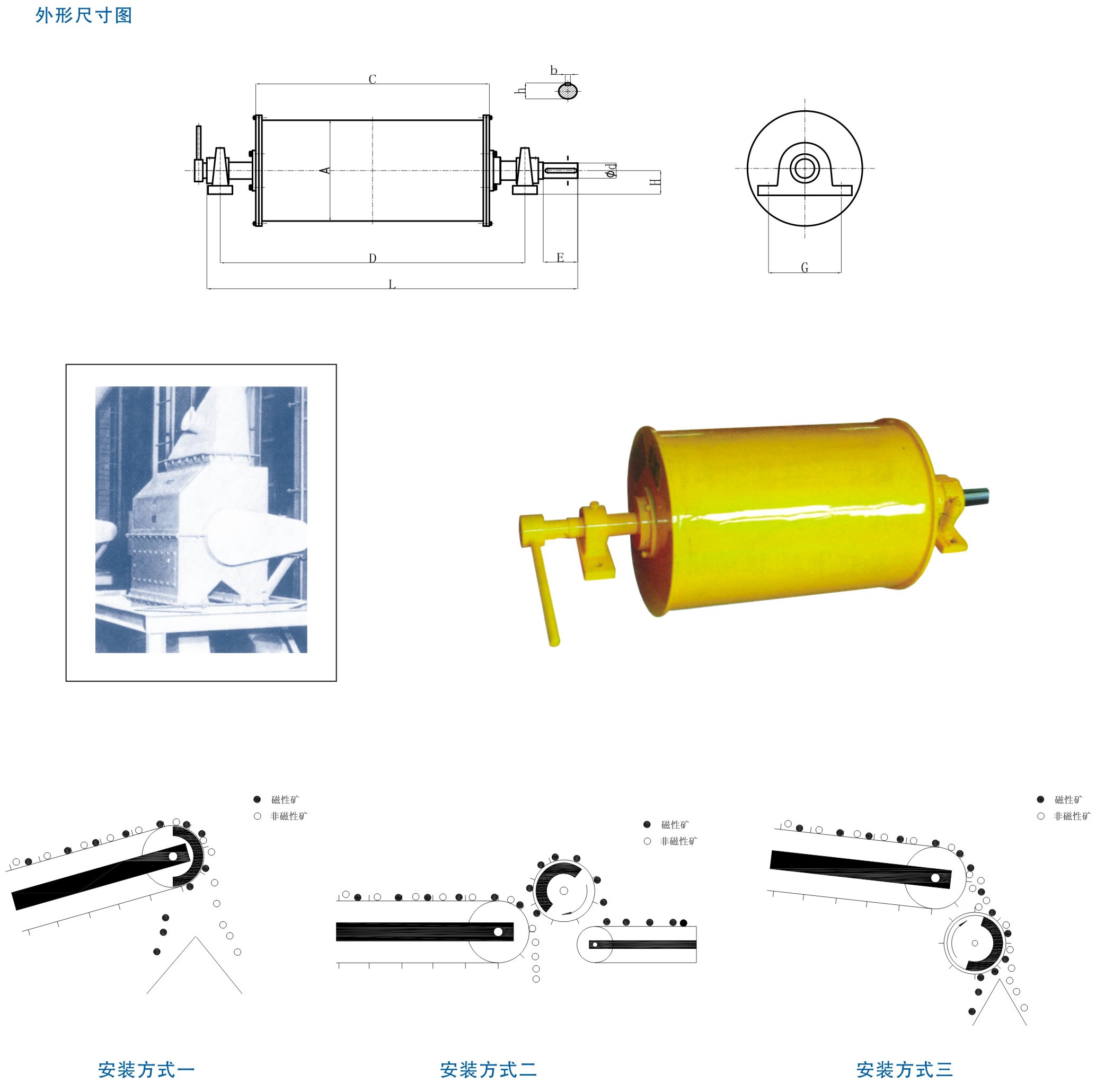

    本系列产品是一种即可兼作输送机传动滚筒又可单独使用的永磁除铁装置，采用半圆型磁系结构，通过磁系角度的调整，可有效地分离细小颗粒与铁粉。多用于非 磁 性颗粒状、粉状物料的净化处理，有效地保护破碎机、研磨机等安全正常工作，亦可回收废旧物料中的铁磁性物质。磁场强，分离能力大，结构简单牢固，外形 及安 装尺寸可与GB/T988-2009输送机的零部件的转动滚筒相同，也可单独使用。筒表磁场分为普通型150-200MT，强磁型 300-400MT。根据产品使用要求可作成不同筒径、轴径、中心跨距，供用户选择。

Uses and Features:

     This series is a permanent magnet machine can double as conveyor drive roller can be used alone or in addition to iron equipment, using semi-circular magnetic system structure, by adjusting the angle of the magnetic system can be effectively separated fine particles and iron. Used for non-magnetic granular, powdery material purification treatment, the effective protection of crushers, grinding machines and other security work, but also the recycling of waste materials in ferromagnetic materials. Magnetic field is strong, large separation capacity, simple solid structure, shape and installation dimensions rotating roller conveyor with GB/T988-2009 parts of the same machine can also be used alone. Table barrel field is divided into common type 150-200MT, magnetic-type 300-400MT. Products can be made according to the requirements of different cylinder diameter, shaft diameter, the center span for users to choose.
